ODM EU STANDARD STACKABLE HOME ENERGY STORAGE 20.48KWH Manufacturer, Suppliers

Our Home Energy StorageÂ products are widely used by installers, agents, distributors, factories, and traders.

Maximize your homeâ€™s energy efficiency with Elite PowerÂ advanced 20.48kWh stackable energy storage system. Designed for modern homes, this compact and scalable solution ensures you always have reliable, sustainable power, whether for backup or self-consumption.

Send Inquiry

Product Description

Product Advantages

Capacity

20.48kWh, providing reliable power storage for daily energy needs.

Stackable Design

Flexible and space-saving, allowing multiple units to be stacked for higher capacity.

European Standard Compliance

Meets high-quality safety standards, ensuring safe and efficient energy storage.

ETL, CB, and CE Certified

ETL listed for safety compliance in North America, CB certified for global standards, and CE marked for European safety, ensuring the system meets rigorous international safety regulations.

Long Life Cycle

Robust and durable with a long service life for years of dependable performance.

Efficient Energy Management

Helps reduce energy bills by storing excess solar power for later use.

Wireless Connectivity

Built-in wireless communication for remote monitoring and management of your energy system.

Port Identification for Simple Installation

Smart port identification feature ensures easy and error-free setup with quick connection to your solar or energy system.

Easy Installation & Integration

Simple setup with seamless integration into existing solar or energy systems, making it a hassle-free addition to your home.

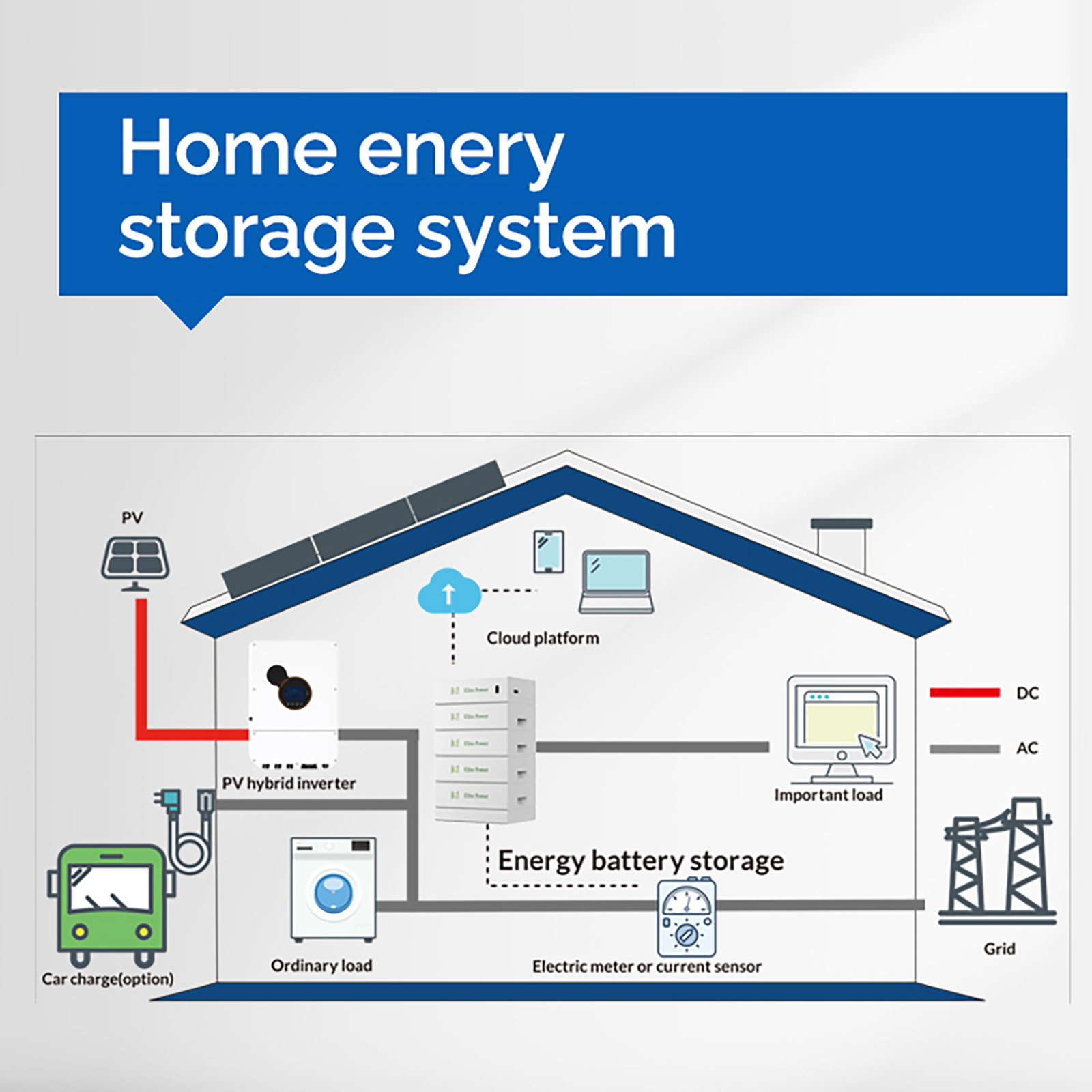

Homes with solar energy systems
Off-grid applications
Backup power in case of outages
Energy self-sufficiency

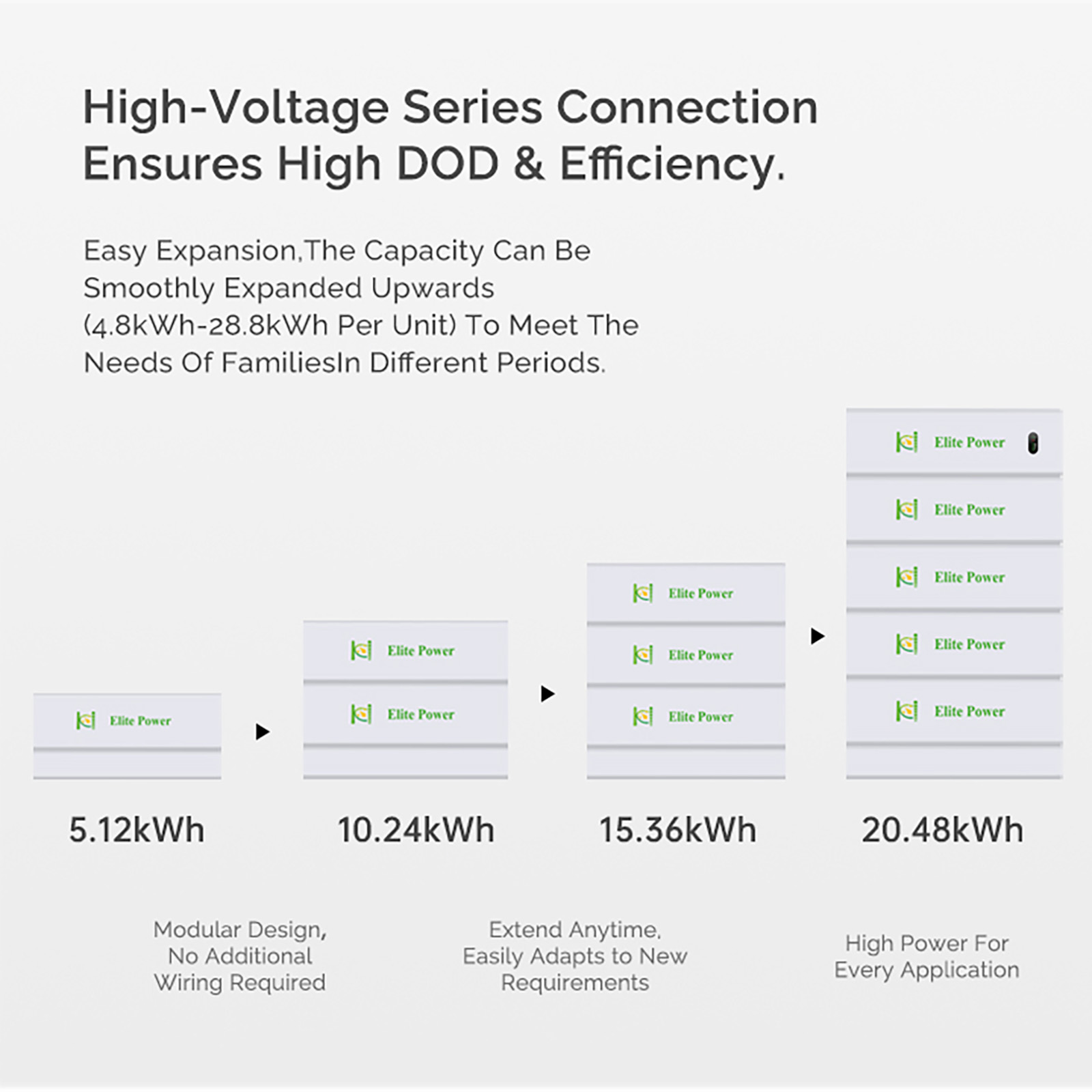

The 20.48kWh product consists of 4 independent battery units, integrated display output units, and a bottom mounting base.

Each battery module can be selected from 1-4 modules for parallel stacking, and each battery module has independent protection sampling function.

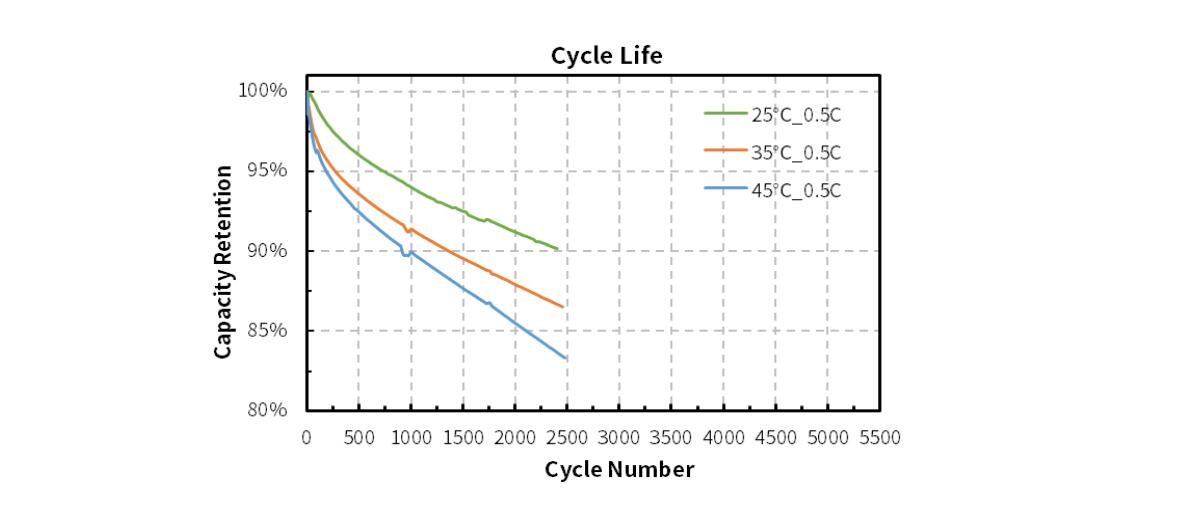

Cycles of the cell

The discharge curve of the cell at different magnification and temperature

Product Specification

Item		General Parameter	General Parameter	General Parameter	General Parameter
Combination method		16S1P	16S2P	16S3P	16S4P
Rated Capacity	Typical	100Ah	200Ah	300Ah	400Ah
	Minimum	98Ah	196Ah	294Ah	392Ah
Nominal Voltage		51.2V
Factory SOC		30~60%
Voltage at end of		44.8V
Charging mode		MAX 58.4V
Rated reserved energy		5.12KWh	10.24KWh	15.36KWh	20.48KWh
Standard charge current		20A	40A	60A	80A
Limiting current		20A	40A	60A	80A
Standard discharge		20A	40A	60A	80A
Maximum Charge Current		90A	180A	250A	250A
Maximum Discharge Current		90A	180A	250A	250A
Operation Temperature Range		Charge: 0~50°C \| Discharge: -20~55°C
Storage Temperature Range		Less than 12 months : -10~35°C \| Less than 3 months: -10~45°C \| Less than 7 days : -20~65°C
Dimensions		L620W460H491mm	L620W460H686.5mm	L620W460H882mm	L620W460H1077.5mm
Weight		92Kg	144Kg	196Kg	248KG

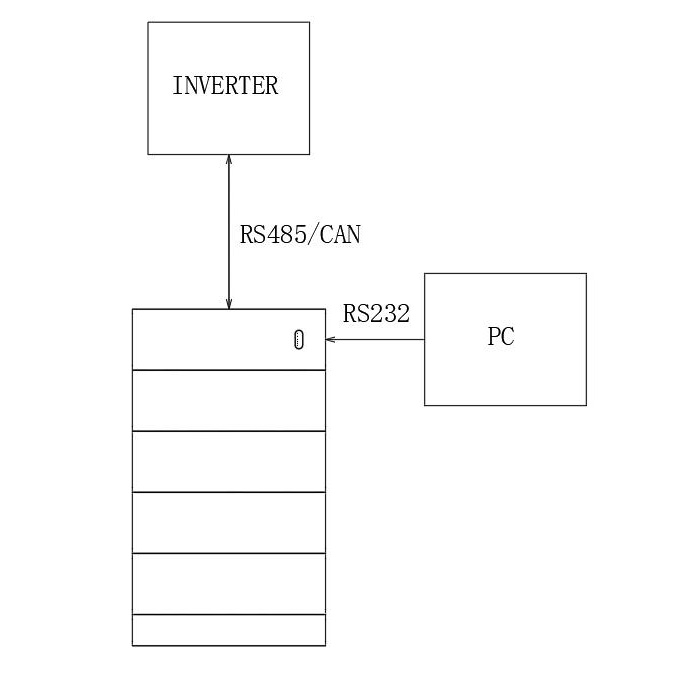

Communication mode		RS485/CAN

Product Details

Frequently Asked Questions

What is the total capacity and energy of this battery system?

Depending on the configuration (from 1 to 4 battery units), the rated reserved energy ranges from 5.12KWh up to 20.48KWh with a typical capacity of up to 400Ah.

How does the stackable design benefit installation?

The stackable layout allows users to easily add and mount 1 to 4 independent battery modules in parallel. This configuration minimizes floor space requirements and makes expanding capacity clean and simple.

What safety and standard certifications does this product carry?

The system is ETL listed for safety compliance in North America, CB certified for global standards, CE marked for European safety, and fully complies with European Standard safety regulations.

What are the recommended charge and discharge operating temperatures?

The operating temperature range for charging is 0°C to 50°C, and for discharging is -20°C to 55°C, ensuring robust performance in various seasonal climates.

Which communication modes are supported?

The energy storage system integrates both RS485 and CAN communication interfaces, allowing for remote monitoring and simple setup with most hybrid solar inverters.
