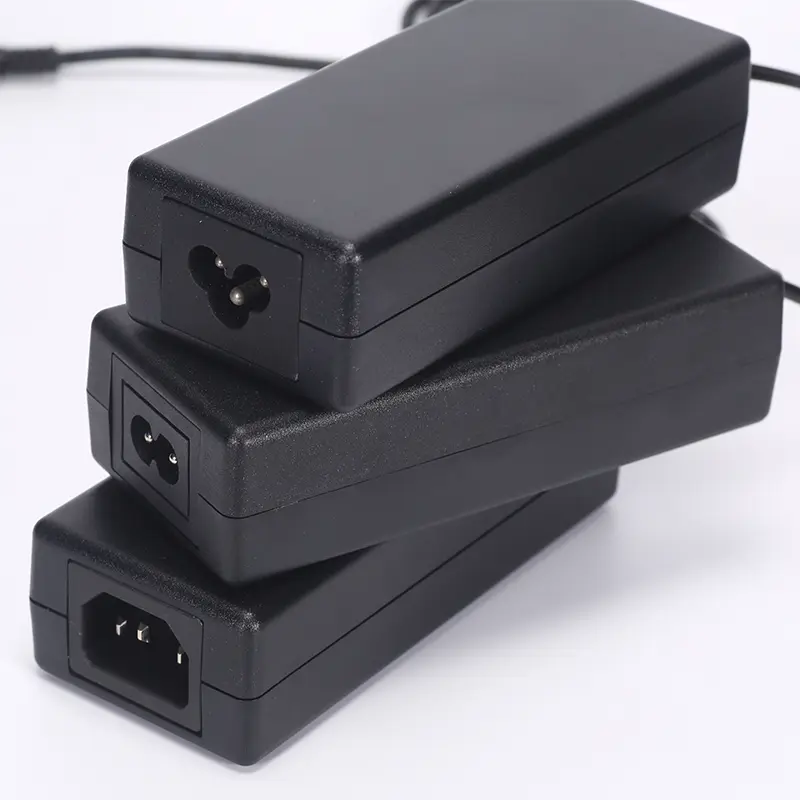

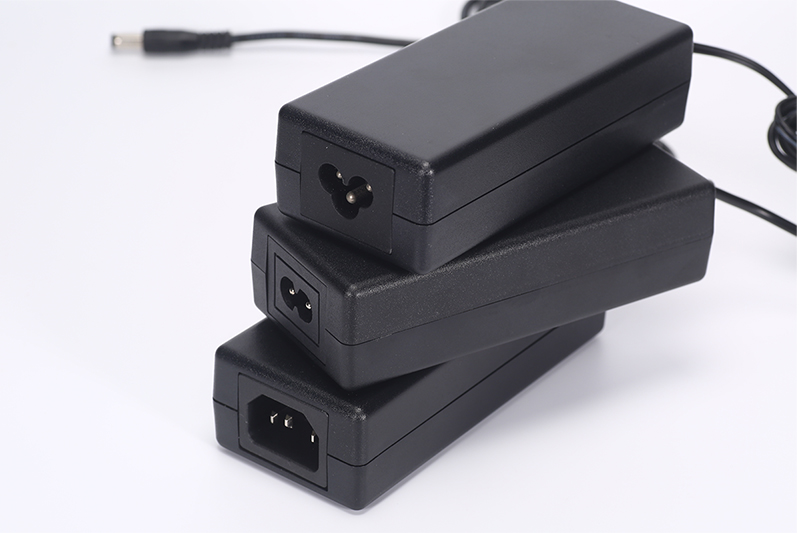

ODM 65W series External Power Supplies Desktop Type Suppliers, Factories

We design and manufacture beautiful appearance power supply. With the advantages of excellent quality, this power supply is highly praised by customers. We could make External Power Supplies Desktop Type, such as, 24W series, 30W series, 40W series, 50.4W series, 96W series, 150W series, 300W series, 360W series, 480W series, 150W series, 200W series, and so on.

Send Inquiry

Product Description

Energy Storage System

Product Specification

OUTPUT	Voltage(DC)	15-30V	31-45V	46-70V	71-105V
	Current(Max.)	1.75A	1.29A	0.8A	0.66A
	Power(Max.)	40.25W	40W	40.02W	40W
	Ripple & noise	≤600mV	≤900mV	≤1400mV	≤2000mV
	Voltage tolerance	±5%
INPUT	Voltage Range	100-240VAC
	Frequency	50-60Hz
ENVIRONMENT	Operation Temp	-25℃ to +45℃
	Storage Temp.	-25℃ to +80℃
	Operation HUM	10%-90%
SAFETY	Safety certificates	61347, FCC, CE
Other	MTBF	>50,000 hours at 80% load and 25℃
	Dimension	155X44X31mm

Energy Storage System

Performance & Standard Specifications

1. The range of input voltage is from 90Vac to 264Vac with a single phase.
2. Input AC Current, 0.15Amax @ 100-240Vac input & Full load.
3. The inrush current will not exceed 50A at 100-240Vac input and Max load for a cold start at 25℃.
4. While input 115Vac and 230Vac, the average efficiency is more than 73.48%. The test point is at 25%, 50%, 75% and 100% of max load respectively.
5. While input 115Vac or 230Vac and the output is no load, the input power loss must be less than 0.5W.
6. While input 100~240Vac and capacitance load is 470uF, the adapter can turn on normally and the output is in the rated range.
7. Output Load Transient Response: the output shall not exceed 10% of the nominal output voltage, load fluctuation: from 20% to 80%, R/S: 0.5A/uS, frequency: 100Hz duration and 8mS at 80%.
8. Over Current Protection, Short Circuit Protection and Over Voltage Protection.
9. Drop in: Height: 1m; the product should fall off on the plank with a thickness of at least 53mm, and the plank should be placed on the cement ground or on ground without flexibility. Random surface in all 3 times.
10. The MTBF shall be at least 50,000 hours at 25°C, Full load and nominal input condition.
11. Dielectric Strength (Hi-pot): Primary to Secondary: 4242VDC / 5mA Max / 60 seconds (3 seconds for mass production).
12. Leakage Current: 0.25mA max. at 264Vac / 50Hz.
13. Insulation Resistance: 50MΩ min. at primary to secondary with 500Vdc test voltage.

Our Strengths

Why Choose Us?

All of our power supply products have obtained UL/CUL, TUV, GS, PSE, CE, KC, CCC, SAA, BMSI and other global quality and safety certifications.
We offer ODM and OEM service for customers.
Sample delivery date is 3 to 7 days.
Delivery date for mass production for formal orders is around 25 to 40 working days.
Factory Strength: 20 Years' R&D Innovation Capability, Offering OEM & ODM Service, 800 Employees Factory, 50 Professional R&D Engineers, and 80 QC Members.
Your kind inquiry and visit will be much appreciated.

FAQ

Frequently Asked Questions

QWhat is the input voltage range of this system?

The nominal input voltage range is 100-240VAC with a frequency of 50-60Hz, and the allowable single-phase input voltage range is 90Vac to 264Vac.

QWhat protective features are integrated into the product?

The product is designed with comprehensive built-in protection mechanisms including Over Current Protection, Short Circuit Protection, and Over Voltage Protection.

QWhat quality and safety certifications does the power supply hold?

Our power supply systems are fully certified with global quality and safety standards, including UL/CUL, TUV, GS, PSE, CE, KC, CCC, SAA, and BMSI.

QWhat is the operating temperature range for the device?

The operating temperature ranges from -25℃ to +45℃, and the storage temperature ranges from -25℃ to +80℃, with an operation humidity of 10% to 90%.

QWhat are the timelines for sample delivery and mass production?

Samples can be delivered within 3 to 7 days, while mass production for formal orders typically takes around 25 to 40 working days.

QDo you provide OEM and ODM customization options?

Yes, we provide full OEM and ODM services. Our factory features 20 years of R&D innovation capability, supported by 50 professional R&D engineers and 80 QC members.
