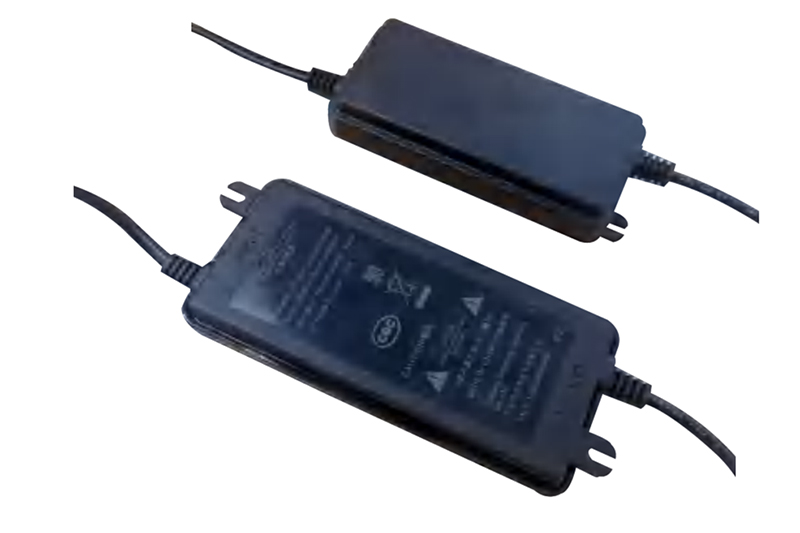

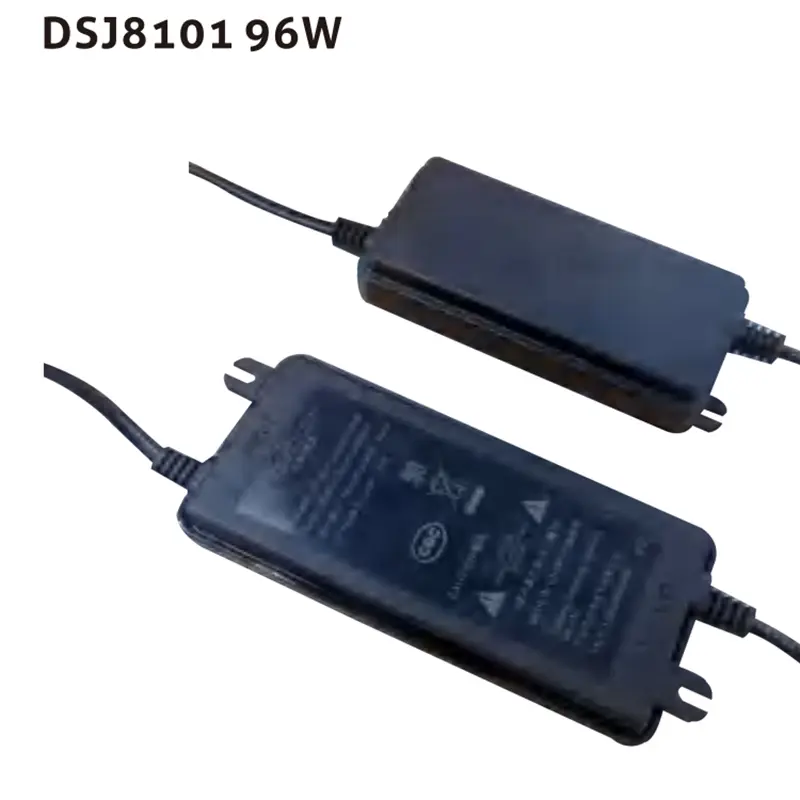

High-Quality 96W Series IP67 Waterproof Power Supply Manufacturers, Factories

We design and manufacture safe and reliable power supply. This waterproof power supplyâ€™s quality is excellent. We could make IP67 Waterproof Power Supply, such as, 12W series, 24W series, 38W series, 48W series, 96W series, 120W series, 180W series, and so on.

Send Inquiry

Product Description

Energy storage system

Product Specification

OUTPUT	Voltage(DC)	24V
	Current	4A
	Power(Max.)	96W
	Ripple & Noise	≤ 240mV
	Voltage Tolerance	±5%
	Standby Power	<0.21W
INPUT	Voltage Range	100-240VAC
INPUT	Frequency Range	50-60Hz
ENVIRONMENT	Operation Temp.	0℃ to +40℃
	Storage Temp.	-20℃ to +80℃
	Operation HUM	10%-90%
SAFETY	Safety Standards	61558 EMC, LVD, CQC
OTHER	MTBF	>50,000 hours at 80% load and 25℃
OTHER	Dimension	162.0 x 67.0 x 32.0 mm

Energy storage system

Detailed Specifications

1. Input Voltage Range: 90Vac to 264Vac, single phase.

2. Input AC Current: 2.3A max @ 100-240Vac input & Full load.

3. Inrush Current (Cold Start): Not exceeding 120A at 240Vac input and Max load at 25℃.

4. Average Efficiency: More than 86.0% at 115Vac and 230Vac input (tested at 25%, 50%, 75%, and 100% load).

5. Energy Consumption: Input power loss is less than 0.21W at no-load condition with 115Vac or 230Vac input.

6. Turn-on Delay Time: 3S max @ 100Vac to 240Vac input & Full load.

7. Hold-up Time: 5mS min @ Full load & 230Vac/50Hz input turn off.

8. Capacitance Load: Adapter turns on normally under 100~240Vac input with a 470uF capacitance load.

9. Output Overshoot / Undershoot: 10% max when power is turned on or off.

10. Output Load Transient Response: Max 10% of nominal output voltage; load fluctuation: 20% to 80%, R/S: 0.5A/uS, frequency: 100Hz.

11. Over Current Protection: 4.5-8A current limit. Output enters hiccup mode and self-recovers once fault is removed.

12. Short Circuit Protection: Input power decreases during short circuit; no damage to power supply, with automatic recovery.

13. Over Voltage Protection: Built-in protection operates when output exceeds voltage limits.

14. Operating Environment: Temperature 0°C to +40°C; Relative Humidity 10%RH to 90%RH.

15. Storage Environment: Temperature -20°C to +80°C; Humidity 5%RH to 95%RH non-condensing.

16. Vibration Test: 10 to 300Hz sweep at constant 1.0G acceleration for 1 hour along X, Y, Z axes.

17. Waterproof Standard: IP67 reference. Tested with 12.5mm nozzle water flow at 100 L/min for 3 min, and vacuum suction pressure of 3Kg/F for 3S.

18. Reliability & MTBF: Minimum 4 hours burn-in at 40°C ± 5°C under 80% load. MTBF ≥ 50,000 hours at 25°C full load.

19. Dielectric Strength (Hi-pot): Primary to Secondary: 4242VDC or 3000VAC / 5mA Max / 60 seconds.

20. Leakage Current: 0.25mA max at 264Vac / 50Hz.

21. Insulation Resistance: 50MΩ minimum at primary to secondary with 500Vdc test voltage.

Our Advantages

Why Choose Us?

☑ Profession: 20 Years’ R&D Innovation Capability, offering customized OEM & ODM Services.
☑ Strong Capacity: 800 employees factory, supported by 50 professional R&D engineers and 80 QC team members.
☑ Reliable Service: Competitive pricing, free samples, and a stable 25 to 40 working days lead time depending on order details.
☑ Fully Certified: All products meet global standards and carry full quality and safety certifications.
☑ Comprehensive Range: Battery chargers, LED drivers, desktop/wall-plug-in/interchangeable external power supplies, USB chargers, IP67 waterproof power supplies, medical power supplies, open frame power supplies, PD chargers, and power cords.

Factory Capabilities: Our manufacturing facility designs and manufactures high-performance open frame power supplies, AC-DC power adapters, chargers, transformers, and audio power supplies. We have successfully launched thousands of products for applications in audio equipment, information technology, telecommunications, green energy systems, medical devices, and home appliances. All power supply products hold UL/CUL, TUV, GS, PSE, CE, KC, CCC, SAA, BMSI, and other international quality certifications. Our research and development laboratory is fully equipped to perform ESD, EMC, lightning surge, temperature rise, mechanical lifetime, and IPXX waterproof testing to deliver tailored power solutions worldwide.

Support

Frequently Asked Questions

What is the input voltage range for this power supply?

The power supply accommodates an input range from 90Vac to 264Vac with a single phase, and features a nominal rating of 100-240VAC at 50-60Hz for global compatibility.

Is this product suitable for wet or outdoor environments?

Yes, this product is designed with an IP67 waterproof reference standard. It is tested to withstand wet environments and can operate reliably in conditions up to 90% relative humidity.

What safety and protection functions are built into the device?

It features comprehensive automatic protection systems, including Over-Current Protection (hiccup mode with self-recovery), Short-Circuit Protection, and Over-Voltage Protection.

What certifications do your power supplies hold?

Our power supply units are globally certified, holding UL/CUL, TUV, GS, PSE, CE, KC, CCC, SAA, and BMSI standards, ensuring top-tier safety and compliance.

How is the reliability and lifespan of the power supply tested?

Each unit undergoes a minimum of 4 hours of burn-in testing at 40°C ± 5°C. The calculated MTBF (Mean Time Between Failures) is at least 50,000 hours under full load at 25°C.
