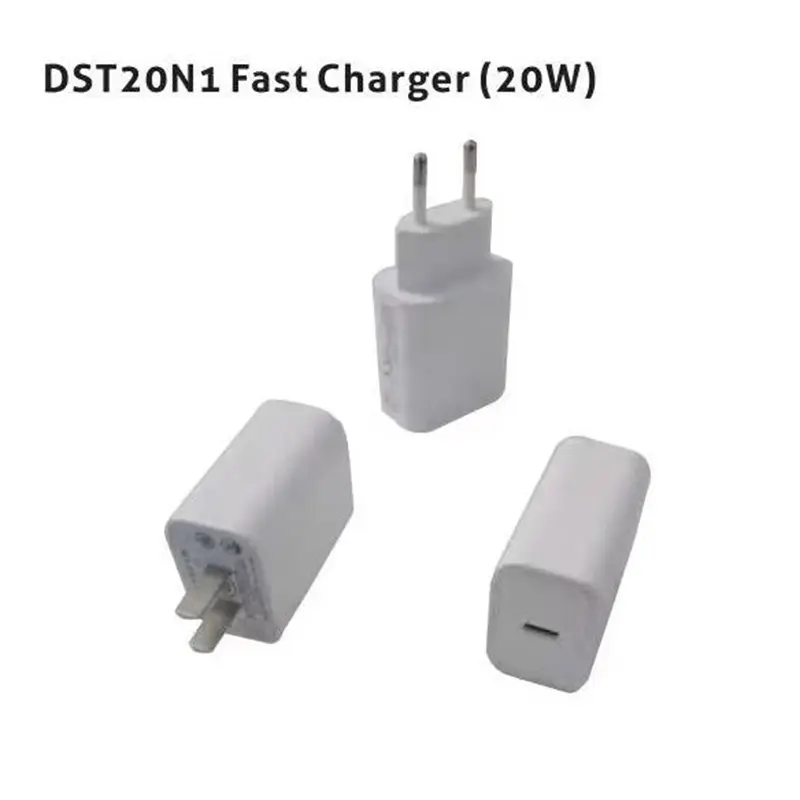

ODM 20W Series External Power Supplies USB Chargers Manufacturer, Factory

We design and manufacture lightweight and portable USB chargers. This USB chargerâ€™s quality is excellent. We could make External Power Supplies USB Chargers, such as, DST12N1 12W series, DST200 20W PD series, DYS806 7.5W USB series, DYS810 12.27W USB series, and so on.

Send Inquiry

Product Description

Energy storage system

Product Specification

OUTPUT	Voltage & Current	5V3A / 9V 2.22A / 12V 1.67A
	Power (Max.)	20W
	Ripple & Noise	≤200 mV
	Voltage Tolerance	±5%
	Standby Power	<0.1W
INPUT	Voltage Range	100-240VAC
INPUT	Frequency Range	50-60Hz
ENVIRONMENT	Operation Temp.	0℃ to +25℃
	Storage Temp.	-20℃ to +70℃
	Operation Hum.	10% - 90%
SAFETY	Safety Certificates	62368, 61558, CB, cULus, FCC, CE
OTHERS	MTBF	>50,000 hours at 80% load and 25℃
OTHERS	Dimension	46.5 x 39 x 23 mm

Energy storage system

Specification Details

☑ The range of input voltage is from 90Vac to 264Vac with a single phase.

☑ Inrush Current (cold start): Will not exceed 80A at 100-240Vac input and Max load for a cold start at 25℃.

☑ PCB End Average Efficiency (at 115Vac and 230Vac): 5V/3A >81.39%, 9V/2.22A >85.47%, 12V/1.67 >85.48% (tested at 25%, 50%, 75%, and 100% of max load).

☑ Input power loss under no-load condition is less than 0.1W at 115Vac or 230Vac input.

☑ Export Protocol: Type-C USB. Supports USB Power Delivery (PD 2.0 & PD 3.0 protocol: 5V3A / 9V2.22A / 12V1.67A), Quick Charge 2.0/3.0, FCP, AFC, Apple 2.4A, DCP, and Samsung-5V-2A.

☑ Turn-on Delay Time: 3 seconds maximum at 100 Vac to 240 Vac input & full load.

☑ Hold-up Time: 5 milliseconds minimum at full load & 100Vac/60Hz input turning off at worst case.

☑ Capacitance Load: The adapter can turn on normally and output within rated range with a capacitance load of 2000uF at 100~240Vac input.

☑ Output Overshoot / Undershoot: Max 10% during power on or off.

☑ Output Load Transient Response: Output shall not exceed 10% of nominal output voltage. Load fluctuation: 20% to 80%, R/S: 0.5A/uS, frequency: 100Hz duration and 8mS at 80%.

☑ Over Current Protection: Point limited: 5V (3-3.9A), 9V (2.22-3.33A), 12V (1.67-2.6A). Output enters hiccup mode and recovers automatically when fault is removed.

☑ Short Circuit Protection: Input power decreases during short circuit; power supply remains undamaged and recovers automatically when fault is removed.

☑ Over Voltage Protection: Under over-voltage state, protection is triggered (protection limit is ≤25V).

☑ Drop Test: Height of 1 meter onto a wood plank (min 53mm thickness) on concrete ground. Tested 2 times per side, 12 times in total.

☑ Plug-in Test: 10,000 insertion cycles total (Type-C USB: 5,000 times each). Normal appearance, structure, safety, and function after test; pullout force ≥5N.

☑ EMI Standards: Complies with FCC Part 15 class B, EN55032, and GB/T9254.

☑ EMS Standards: Complies with EN55035.

☑ Safety Standards: Accordance with UL62368-1, CSA C22.2 NO.62368-1, IEC62368-1, EN62368-1, AS/NZS 62368.1, and GB4943.1.

☑ Dielectric Strength (Hi-pot): Primary to Secondary: 3000VAC / 5mA Max / 60 seconds (3 seconds for mass production).

☑ Leakage & Insulation: Max 0.25mA leakage current at 264Vac/50Hz. Min 50MΩ insulation resistance at 500Vdc.

☑ Altitude Limit: Applicable up to 2000 meters in non-tropical conditions.

ELITE

Why Select Us?

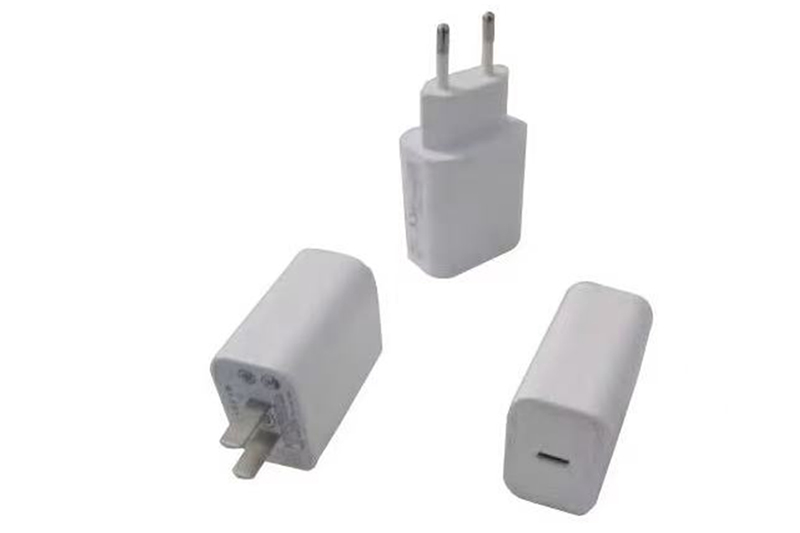

20W Series External Power Supplies USB Chargers2

Wide Application: Our power adapters are widely used in consumer electronics, home appliances, office equipment, medical devices, industrial equipment, transportation, photography, emergency equipment, and power tools.
Rigorous Testing: We perform comprehensive testing including ESD, EMC, lightning surge, temperature rise, mechanical plug durability, and IPXX waterproof testing.
Service: Competitive pricing, free samples, and a lead time of 25 to 40 working days depending on order quantity.
Reliability: Completely certified products matching global standards.

Information Center

Frequently Asked Questions

What protocols does the Type-C USB port support?

The Type-C interface supports USB Power Delivery (PD 2.0 and PD 3.0) with output specs of 5V3A, 9V2.22A, and 12V1.67A. It also supports Quick Charge 2.0/3.0, FCP, AFC, Apple 2.4A, DCP, and Samsung 5V-2A.

What safety certifications does this power adapter meet?

The product is designed and tested to comply with international safety regulations, including UL62368-1, CSA C22.2 NO.62368-1, IEC62368-1, EN62368-1, AS/NZS 62368.1, and GB4943.1. It carries CB, cULus, FCC, and CE marks.

What protection mechanisms are integrated into the adapter?

It features Over Current Protection (OCP) with self-recovery, Short Circuit Protection (SCP) with auto-recovery, and Over Voltage Protection (OVP) limited to ≤25V to prevent device damage.

What is the standby power consumption of this adapter?

This power supply is highly efficient, features less than 0.1W standby power loss when there is no load at 115Vac or 230Vac input.

How durable is the Type-C port on the power adapter?

The adapter has successfully passed a rigorous plug-in test machine procedure for a total of 10,000 insertion and extraction cycles, showing normal structure, function, and safety parameters afterwards.
