ODM All-In-One Home Energy Storage 15kwh Manufacturer, Manufacturers

Our Home Energy StorageÂ products are widely used by installers, agents, distributors, factories, and traders.

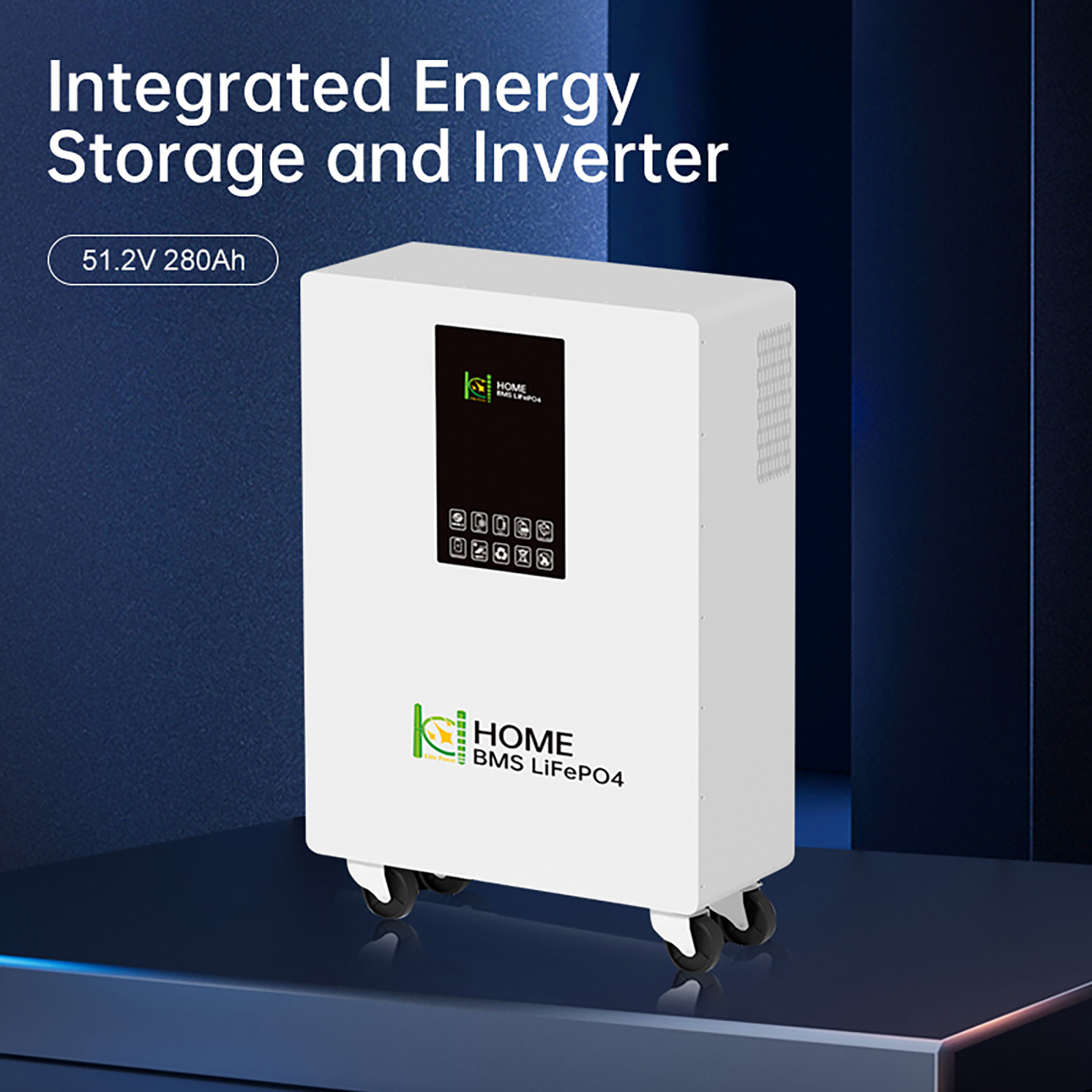

Elite PowerÂ 15kWhÂ includes an iron lithium battery pack coupled with a 5kW inverter. The battery pack is composed of 16 high-capacity 280AH cells, configured in both series and parallel. With a scientifically optimized internal design and advanced manufacturing techniques, it delivers high energy density, long lifespan, exceptional safety, reliability, and a wide operating temperature range. This system provides an eco-friendly energy storage solution.

Send Inquiry

Product Description

Product Advantage

All-in-one design

A comprehensive solution that integrates multiple features into a single unit, requiring no additional configuration for operation.

01 Product Details

No risk of electrical exposure

Safety-focused design that effectively eliminates electrical hazards, ensuring user protection.

02 Product Details

Plug-and-play functionality

Quick and easy access with no complex setup, allowing for immediate use right out of the box.

03 Product Details

Efficient photovoltaic input

Devices with a 3-6kW capacity feature a 9kW photovoltaic input, optimizing energy utilization.

04 Product Details

Simple on-site installation

Streamlined installation process with a low technical barrier, enabling rapid setup without the need for specialized personnel.

05 Product Details

Multi-function status indicator

Provides real-time updates on the status of photovoltaic, battery, grid EPS, networking, and overall system operation.

06 Product Details

Product Specification

Battery Cell	Specification Model	280Ah
	Capacity	280Ah
	Nominal Voltage	3.2V
	Internal Resistance	≤0.4mΩ
	Combination Mode	16S1P
	Grouping Standard	Tolerance < 1%
		Single Section Internal Resistance Range < 0.2mΩ
		Single Section Voltage Difference ≤ 5mV
		Charge Retention Capacity > 90%
Parameter	Nominal Voltage (V)	51.2
	Nominal Capacity (Ah)	280
	Charging Cut-off Voltage (V)	58.4
	Discharge Cut-off Voltage (V)	40
	Maximum Continuous Discharge Current (A)	200
	Standard Charging Current (A)	50
	Charging Temperature	0℃ ~ 45℃
	Discharge Temperature	-20℃ ~ 65℃
	Battery Size	645 * 275 * 840mm
	Battery Weight	135Kg
	Storage Temperature Range	-20℃ ~ 55℃
	Storage Humidity (RH)	5% ~ 95% (No Condensation)
Management System	Single Overvoltage Protection Value	3.65V
	Overpressure Release Value	3.55V
	Single Undervoltage Protection Value	2.5V
	Undervoltage Release Value	2.7V
	Overcurrent Protection Value	210A
Inverter	Model	5048MH
Input	Input Source	L + N + PE
	Rated Input Voltage	220/230/240VAC
	Voltage Range	154-264VAC ± 3V (APL Mode), 185-264VAC ± 3V (UPS Mode)
	Frequency	50Hz/60Hz (Automatic Adaptation)
Output	Rated Capacity	5000W
	Output Voltage	220/230/240VAC ± 5%
	Output Frequency	50/60Hz ± 0.1%
	Wave Form	Pure Sine Wave
	Transmission Time	Computer (UPS mode) 10ms, Home device (APL mode) 20ms
	Peak Power	10000VA
	Overload Capacity	Battery Mode: 21s @ 105%~150% Load, 11s @ 150%~200% Load, 400ms @ >200% Load
	Peak Efficiency (Battery Mode)	>94%
Battery	Battery Voltage	48Vdc
	Constant Charge Voltage (Adjustable)	56.4Vdc
	Floating Charge Voltage (Adjustable)	54Vdc
Charger	PV Charging Mode	MPPT
	PV Input Maximum Power	5500W
	MPPT Tracking Range	120 ~ 500Vdc
	Optimum Voltage	300 ~ 400V
	PV Input Voltage Maximum	500Vdc
	PV Charging Current Maximum	80A
	AC Charging Current Maximum	80A
	Charging Current Maximum	80A
Display	Liquid Crystal Display	Display running mode, load, input, output, etc.
Environment	Operating Temperature	0 ~ 40℃
	Humidity	20% ~ 95% (Non-Condensing)
	Storage Temperature	-15 ~ 60℃
	Altitude	No more than 1,000 meters above sea level (derated above 1,000 meters, maximum 4,000 meters, refer to IEC62040)
	Noise	≤50 dB

Product Details

Frequently Asked Questions

What are the key benefits of the all-in-one design?

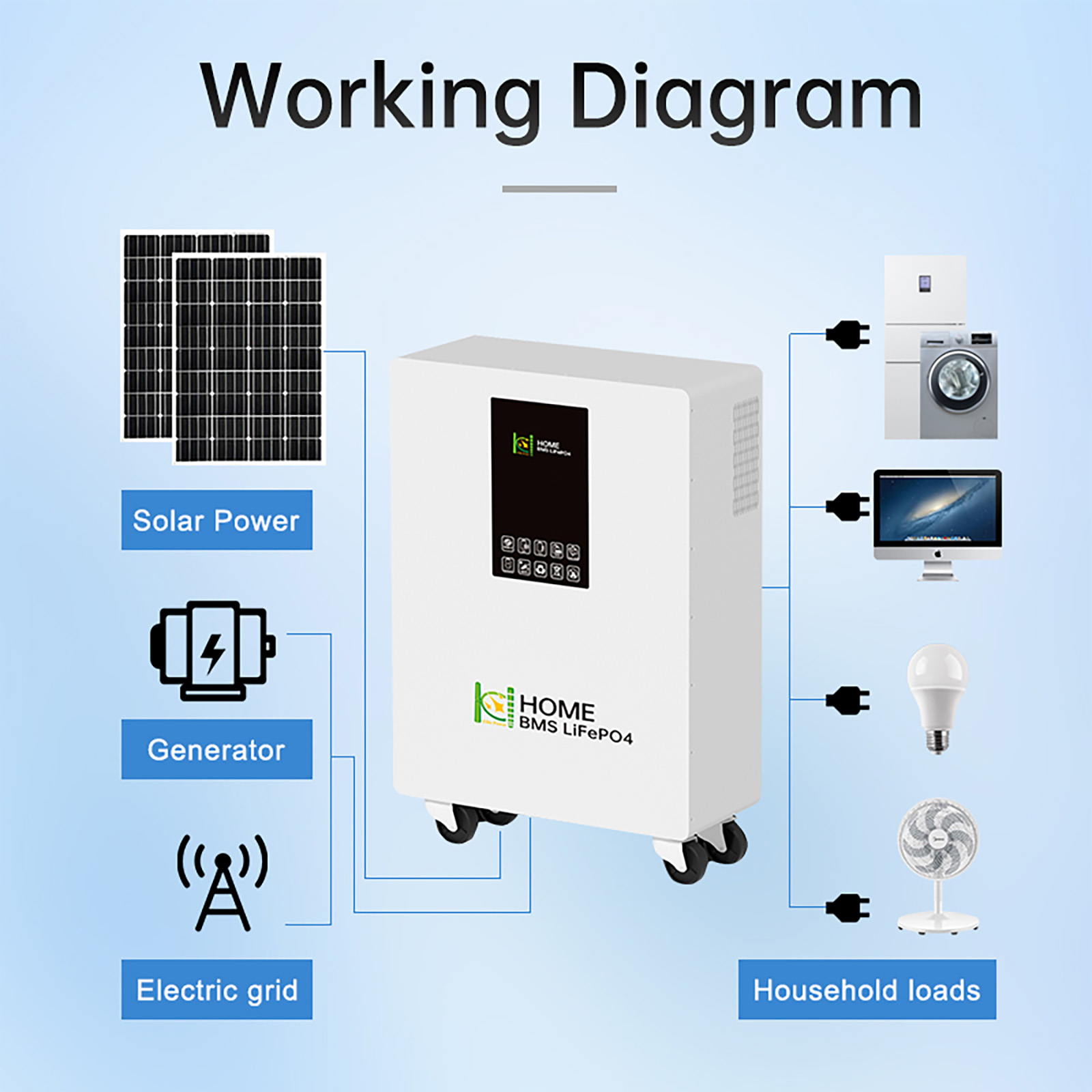

The all-in-one design provides a comprehensive energy storage solution by integrating the battery management system, inverter, and control systems into a single block. This allows for plug-and-play functionality, making installation simple with minimal technical setup required.

What is the capacity and lifespan standard of the battery cells?

The system features high-capacity 280Ah battery cells with a nominal voltage of 51.2V. The cells strictly follow advanced grouping standards, including a voltage tolerance of less than 1% and a charge retention capacity of over 90%.

How efficient is the solar PV input charge system?

The integrated charger operates in MPPT mode and supports a maximum PV input power of 5500W. The MPPT tracking voltage range is 120Vdc to 500Vdc, with an optimum operation window between 300V and 400V, ensuring maximum solar energy conversion.

What output protection and transmission times does the inverter support?

The inverter delivers a rated output of 5000W of Pure Sine Wave power with a peak power capacity of 10000VA. It has a fast transmission time of 10ms for computers (UPS mode) and 20ms for standard home appliances (APL mode), preventing power disruptions.

What are the safe operating and storage temperature limits?

The system charges safely within a temperature range of 0℃ to 45℃ and discharges between -20℃ and 65℃. For long-term storage, the recommended temperature range is -20℃ to 55℃ with a non-condensing humidity range of 5% to 95%.
