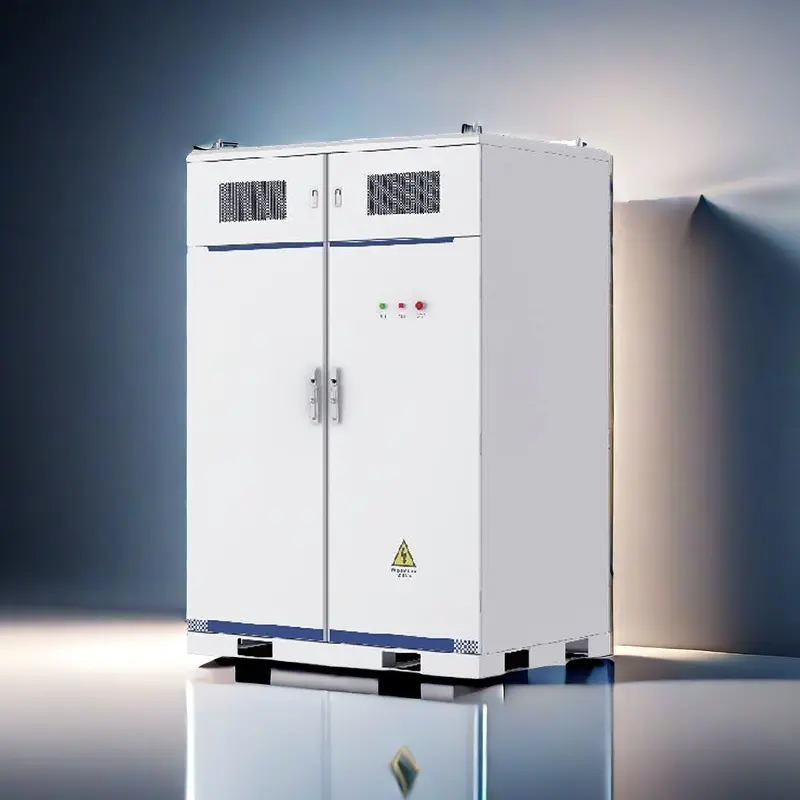

OEM COMMERCIAL ENERGY STORAGE CABINETS (215KWH) Manufacturer, Factory

1 / 3

OEM COMMERCIAL ENERGY STORAGE CABINETS (215KWH) Manufacturer, Factory

Elite Power 215kWh Commercial energy storage cabinets are designed with advanced technology, helping to reduce energy costs, improve efficiency, and support sustainable energy practices. Whether it's storing excess solar power, providing backup power, or optimizing energy use during peak hours.Â Elite Power 215kWh Commercial energy storage cabinets offer efficient, scalable, and reliable energy storage for businesses and large facilities.

Send Inquiry

Product Description

Product Description Product Details

Commercial Energy Storage System

Product Advantages

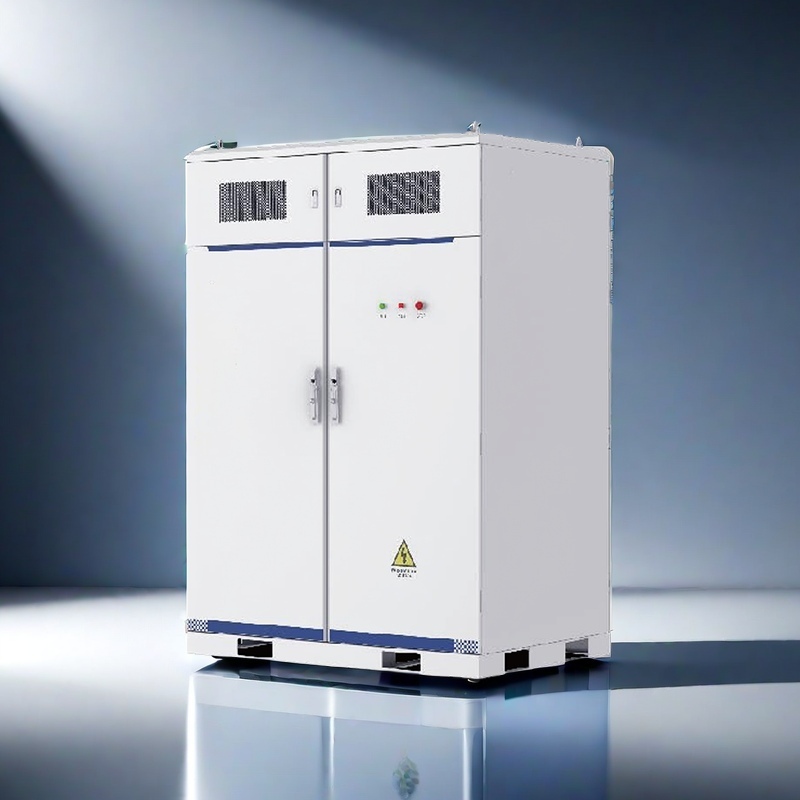

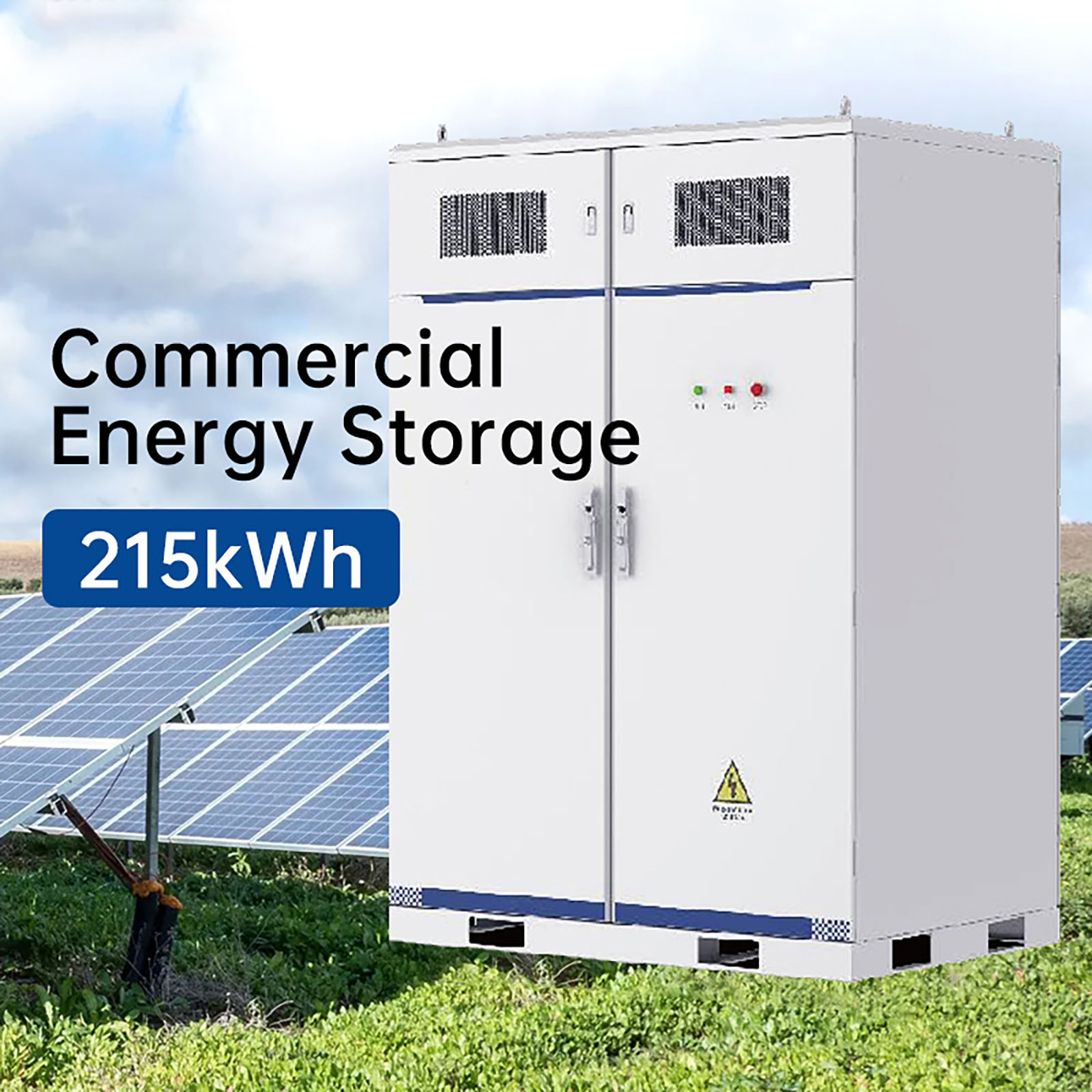

215kWh Commercial Energy Storage Outdoor Cabinet

The 215kWh lithium battery energy storage outdoor cabinet is a high-tech product optimized for small industrial and commercial energy storage applications. It perfectly integrates the lithium battery system, PCS (Power Conversion System), and EMS (Energy Management System), supporting multiple working modes. It is ideal for backup power supply, peak shaving, electric energy storage, new energy integration, and other application scenarios.

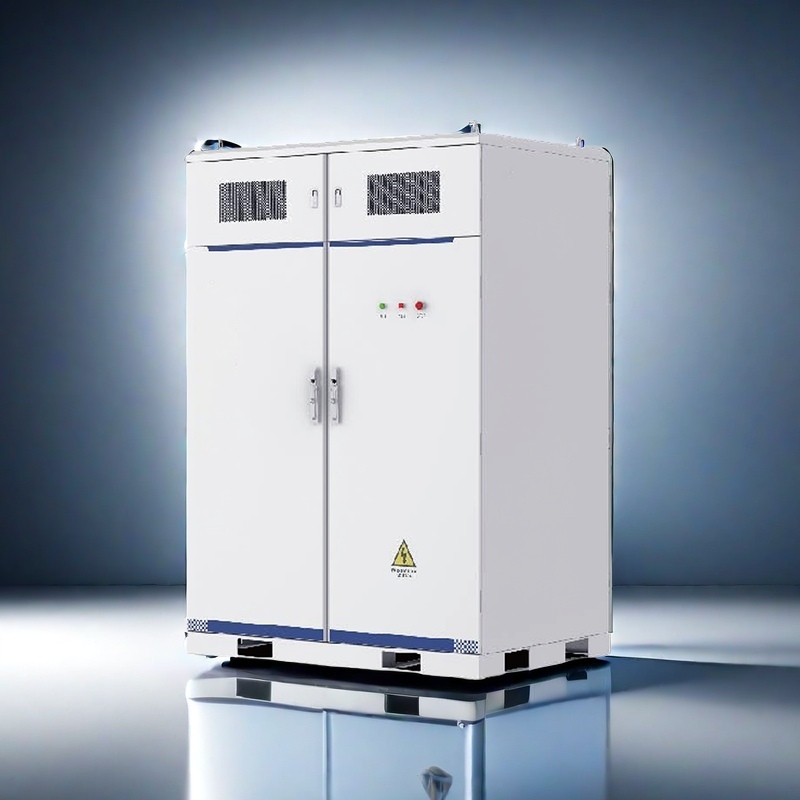

Features flexible configuration and strong scalability. It supports multiple groups of parallel standard PACK modular designs, allowing free combination for easy operation and maintenance. The unit is equipped with advanced protection systems including automated fire suppression, secure access control, and smart thermal management systems.

BMS & Smart Control Energy Storage Cabinet

Comes with an interactive LCD touchscreen displaying real-time parameters, records, operation status, and alarms. Supported by a robust three-level BMS (Battery Management System) from cell to system to guarantee safe operation. Enables remote monitoring via wired or wireless 4G communication interfaces.

Technical Specifications

Product Specification

Project			Specification	Remarks
Basic Parameters	Configuration		1P 240S
	Number of electrical boxes		5
	Battery Type		Lithium Iron Phosphate (LiFePO4)
	Cycle life		≥6000 cycles @ 25°C, 1C
	Bidirectional inverter		200kW
	Wiring Mode		Quick Insert
Electrical Performance	Charging Current	Rated	140A
	Charging Current	Maximum	280A
	Discharge Current	Rated	140A
	Discharge Current	Maximum	280A
	Nominal Power		215kWh
	Voltage Range		672V DC ~ 864V DC
	Rated Voltage		768V DC	3.2V cell standard
Auxiliary Power (Liquid Cooling)	Voltage Range		220V AC (L-N)
	Power		Cooling Capacity ≥ 5kW @ W18/L35	50/60Hz
	Power		Heater ≥ 2000W
	Impact Power		3.5kW	@ 25°C
Auxiliary Power (BMS)	Voltage Range		22V DC ~ 26V DC
Auxiliary Power (BMS)	Power Consumption (Operating)		600W
Cabinet Parameters	Dimensions (WDH)		1500 x 1390 x 2180 mm	Subject to actual construction
	Color		Light Gray (RAL9003 / RAL7021)	To be determined
	Weight		Approx. 3500kg	Subject to configuration
	Corrosion Resistance Grade		C5
	Earthquake Resistance		Zone 9 Intensity	2016 California Building Code SDC D
	IP Protection Rating		IP55
	Power Connection Method		AC side: screw connection + cold-pressed terminal DC side: Quick plug
	Ground Resistance		≤ 1Ω (meets local grid standards)	Reserved grounding bolt
	Communication Protocol		Modbus TCP
	Cooling Method		Liquid Cooling
	Coolant Type		50% Ethylene Glycol + Water mixture
	DC Voltage Range		600V ~ 950V
	Rated Output Power		200kW	Dual PCS Parallel configuration
	Rated Output Voltage		380V AC
	Output Voltage Range		380V ± 10%
	Rated Output Frequency		50Hz
	Output Frequency Range		50Hz ± 2Hz
	AC Side Round-Trip Efficiency		86.30%	Calculated system efficiency with 2.5kW auxiliary draw
	Grid Connection Type		3L + N + PE
Performance Parameters	Relative Humidity		0% - 95%, non-condensing
	Operating Temperature		-20°C to +50°C
	Storage Temperature		-40°C to +75°C
	Operating Altitude		≤2000m normal operation, 2000m - 4000m derated operation
	Corrosion Protection		C4 (Default) / C5 (Optional)
	EMC Rating		Class A
	Protection Level		IP55

System Structure & Installation

Product Gallery

Commercial Energy Storage Cabinet Inner Structure

Liquid Cooling and Control Compartment Detail

Have Questions?

Frequently Asked Questions

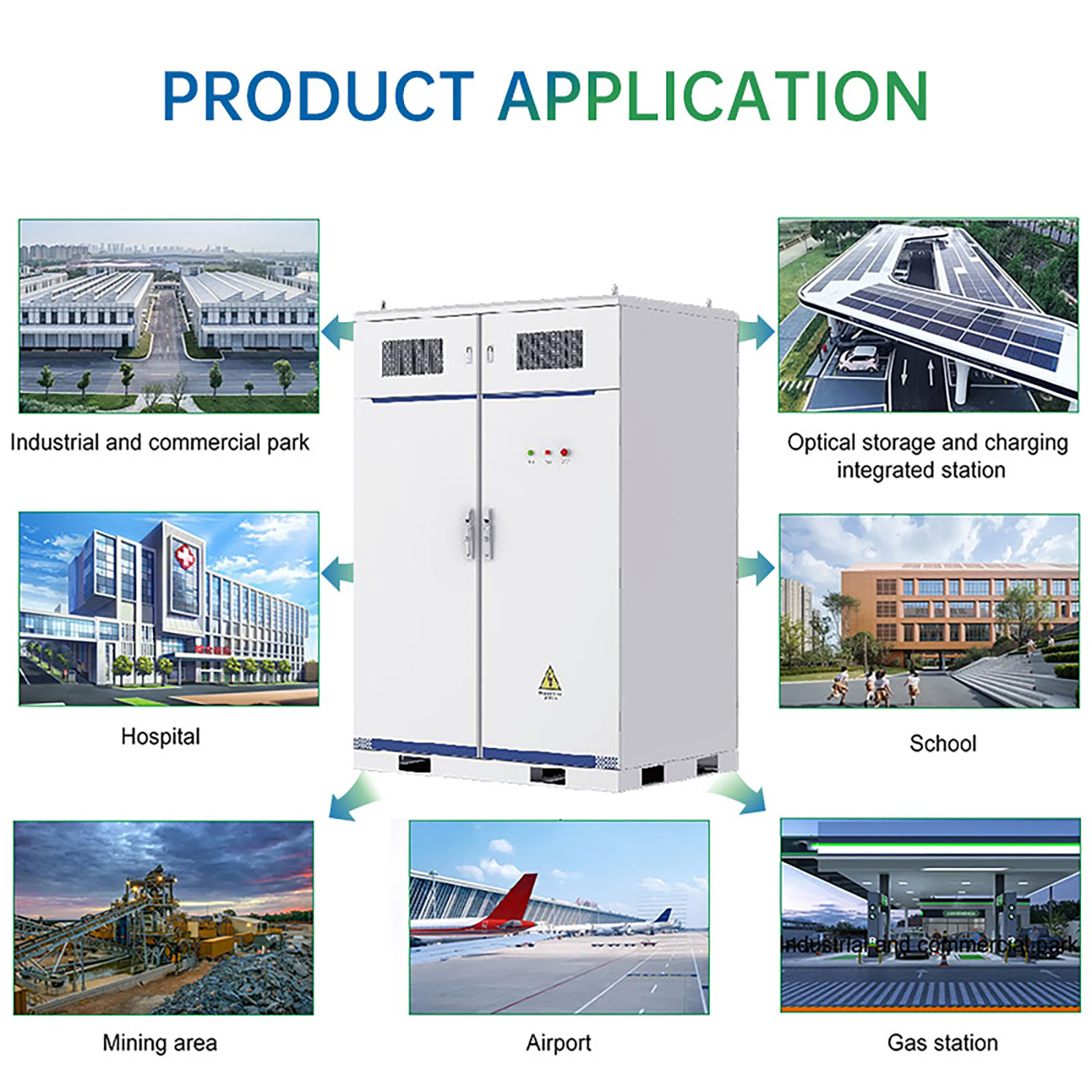

What is the primary application of the 215kWh energy storage outdoor cabinet?

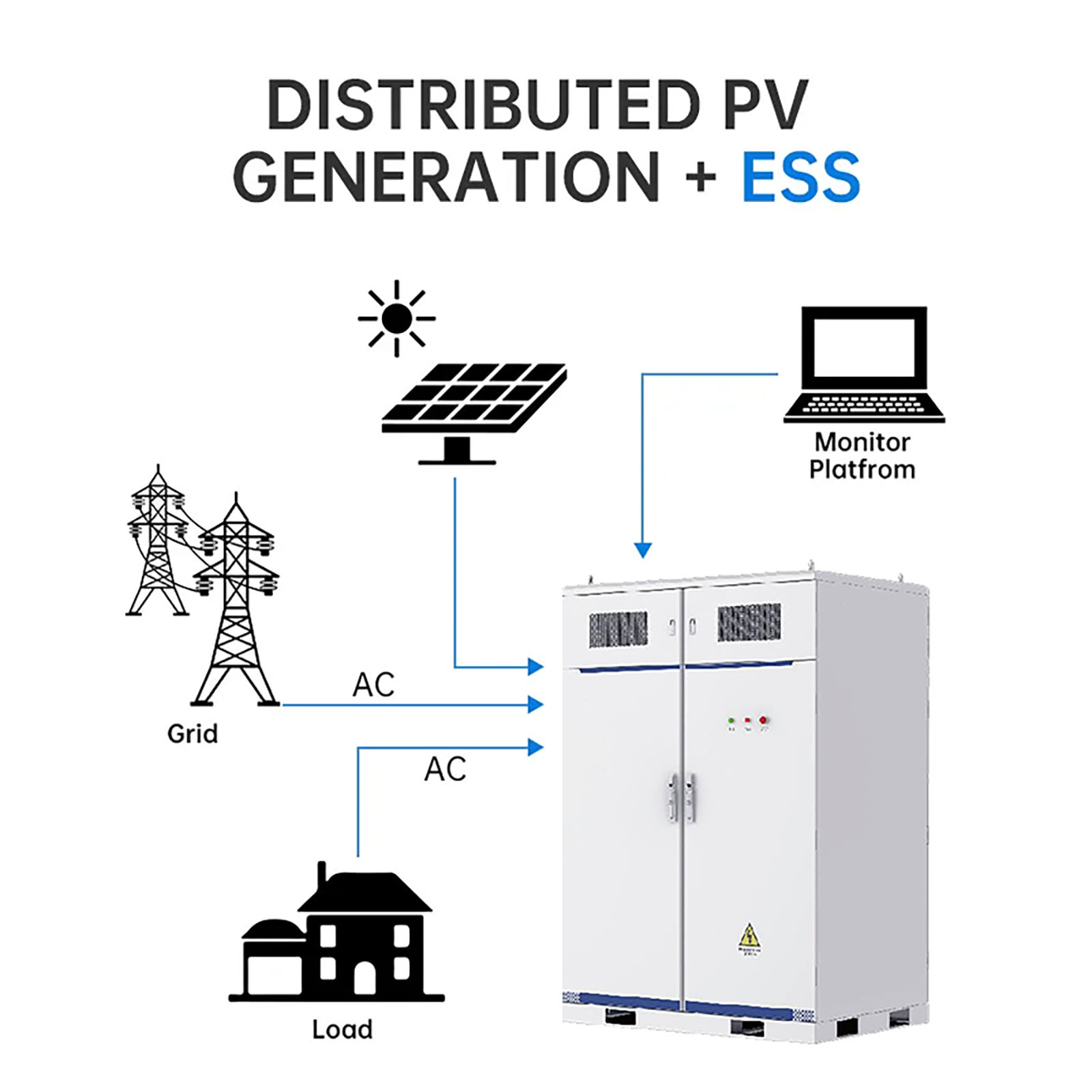

It is designed for small-scale industrial and commercial installations. It serves as an all-in-one backup power supply, peak shaving regulator, electrical energy storage unit, and supports new energy access (such as solar integration).

What battery chemistry is used in this storage system, and what is its lifespan?

The system utilizes high-safety Lithium Iron Phosphate (LiFePO4) chemistry. It features an excellent cycle life of ≥6000 cycles measured at 25°C with a 1C charge/discharge rate.

How does the cabinet maintain safe temperatures for the batteries?

The system uses advanced Liquid Cooling technology utilizing a 50% ethylene glycol + water mixture coolant. This setup includes a cooling capacity of ≥5kW alongside a ≥2000W heater to manage thermal stability under ambient conditions ranging from -20°C to +50°C.

Does this outdoor cabinet support remote monitoring and status alerts?

Yes, the unit supports Modbus TCP protocol communication via wired or wireless 4G networks. Operators can remotely monitor system stats, view alerts, log operations, and manage configurations.

What structural safety ratings does the energy storage cabinet possess?

The outdoor cabinet has an IP55 ingress protection rating, C5 corrosion resistance grade, and earthquake resistance rated up to Zone 9 intensity (certified to the 2016 California Building Code SDC D).
